Basic firmware: BETAFPVG473 4.5.0
VTX default frequency: R1 5658Mhz
VTX default power: 25mW
Receiver firmware version: ELRS V3.4.3
ESC firmware version: Bluejay V0.19.2
Note:
- The VTX antenna must be installed when the FC is powered on, otherwise the VTX chip may be burned.
- Receiver binding method: Power on and off three times within 5 seconds. The LED light on the front end of the flight controller (printed with BETAFPV silk screen) flashes green twice quickly to indicate the binding state.
- Please carefully identify the gyroscope and download the corresponding firmware to flash it.
Please kindly download the following firmware.
Note: This is for the BMI270 version of the gyroscope.
BF_4.5.1_Matrix Brushless 5IN1 V1.0 BMI270 20251216.hex
Note: The gyroscope used is the ICM42688 version.
BF_4.5.1_Matrix Brushless 5IN1 V1.0 ICM42688 20251216.hex

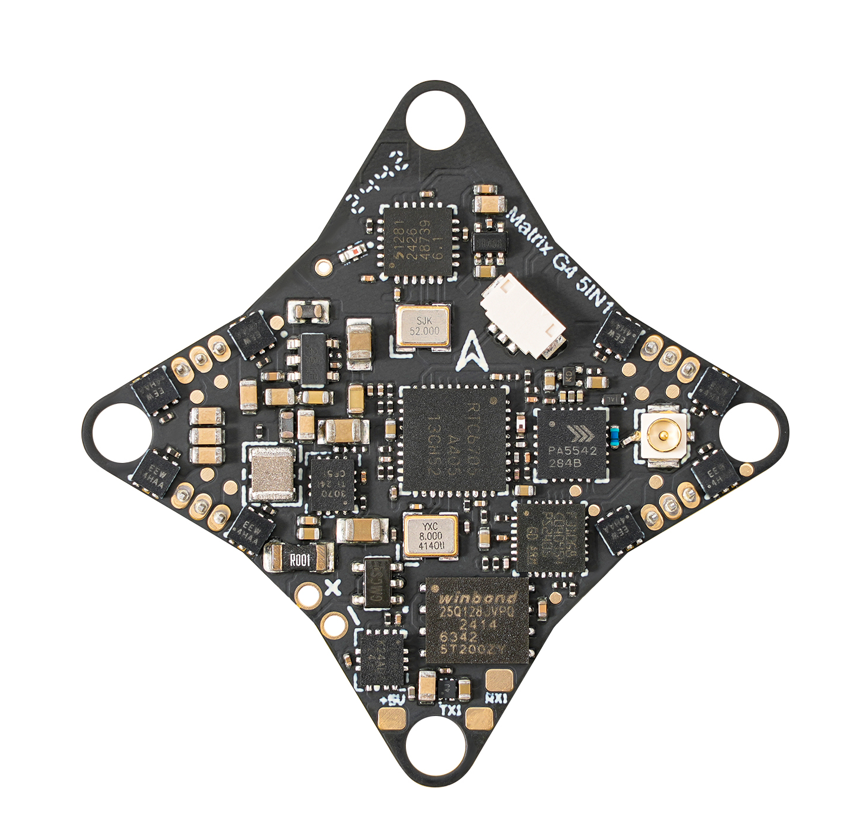

Please carefully identify the gyroscope model and download the corresponding firmware for flashing. You can check this by observing the gyroscope chip model in the flight controller hardware or by connecting to the Betaflight ground station, as follows:
