Joystick calibration consists of two stages: the first stage calibrates the joystick's center position, and the second stage calibrates the joystick's boundaries.
- Power on the remote control;
- Press and hold the SETUP button on the bottom of the remote control to enter the first stage of joystick calibration;
- Move all joysticks to the center position;

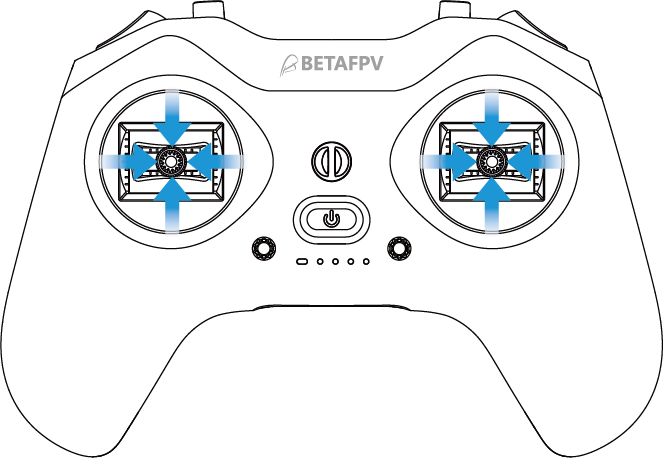

(IMG: Both left and right analog sticks are in the center position)
- Briefly press the SETUP button. The remote control will record the midpoint of the joystick and enter the second stage;
- Move the joysticks so that they lightly touch the four boundaries: up, down, left, and right;

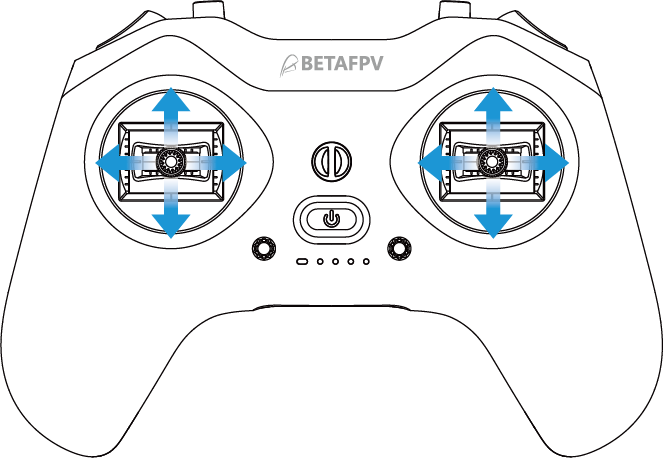

(IMG left and right joysticks are in the four boundary positions of up, down, left, and right)
- Press the SETUP button briefly again. The remote control will then record the joystick's boundaries and complete the calibration.
- The LiteRadio 4 SE remote control's joystick is factory calibrated. Recalibration is only necessary if the remote control has experienced a severe impact or if a significant deviation in the joystick signal is observed after prolonged use.
| Calibration status | Indicator Lights | Buzzer | Status Description |
| Calibration midpoint | The status light flashes red twice | Accompanied by a "beep" sound | Enter joystick calibration mode and move all joysticks to the middle position to set the midpoint. |
| Calibration boundary | The status light flashes red three times. | Accompanied by a "beep beep beep" sound | Gently move the joystick to the four boundaries (up, down, left, right) to set its maximum range. |
| Calibration successful message | The status light flashes red twice. | Accompanied by a "beep beep" sound (one short and one long) | Joystick calibration successful. |
