How to update the firmware for the Super D receiver

Preparation

Please download the following file in advance

SuperD ELRS 3.3.0 firmware:

https://support.betafpv.com/hc/en-us/articles/11917948420249-How-to-flash-the-firmware-for-SuperD-ELRS-diversity-RX

Firmware Update

Connect Wi-Fi

• Power on the receiver and wait for about 60 seconds.
• The receiver’s green LED will blink rapidly, indicating it has entered Wi-Fi mode.
• Turn on your computer’s Wi-Fi and look for the network named: ExpressLRS RX
• Enter the password: expresslrs

Flash Firmware

• Open a browser and visit::http://10.0.0.1/

• Click "UPDATE" to go to the firmware update page.

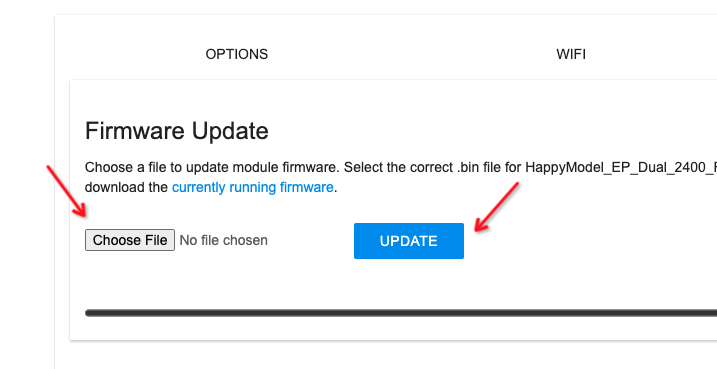

• Click "Choose Flie" to select the receiver firmware, then click "UPDATE" to start refreshing the firmware

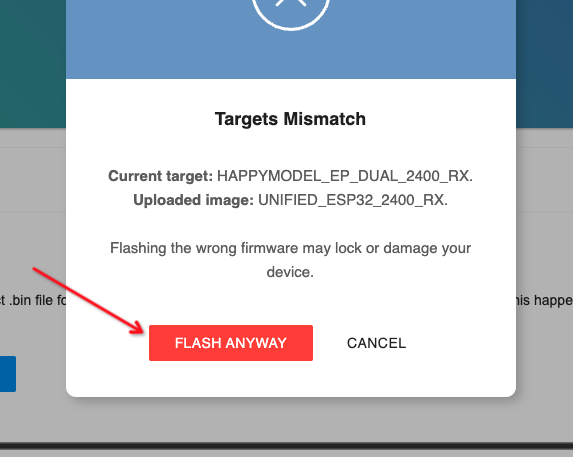

• If a firmware version conflict warning appears, confirm the firmware and click "FLASH ANYWAY" to force the update.

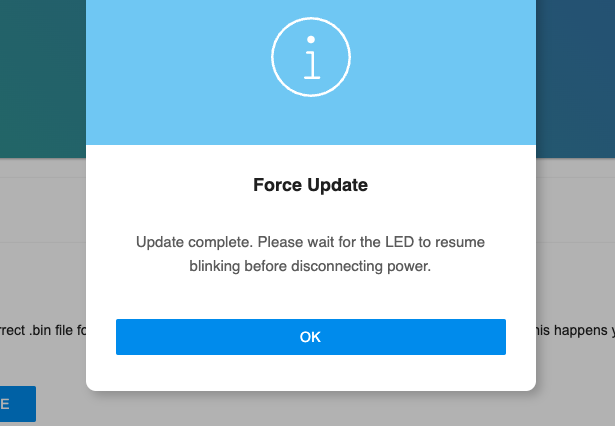

• The following prompt will appear once the firmware has been successfully updated.
