Corresponding FC for Meteor 75 : F4 1S 5A SPI Frsky V3.0 FC & F4 1S 5A Serial ELRS V2.0 FC
The latest CLI which is fit for M03 VTX 1.1 version is different from the one is fit for M03 VTX 1.0.

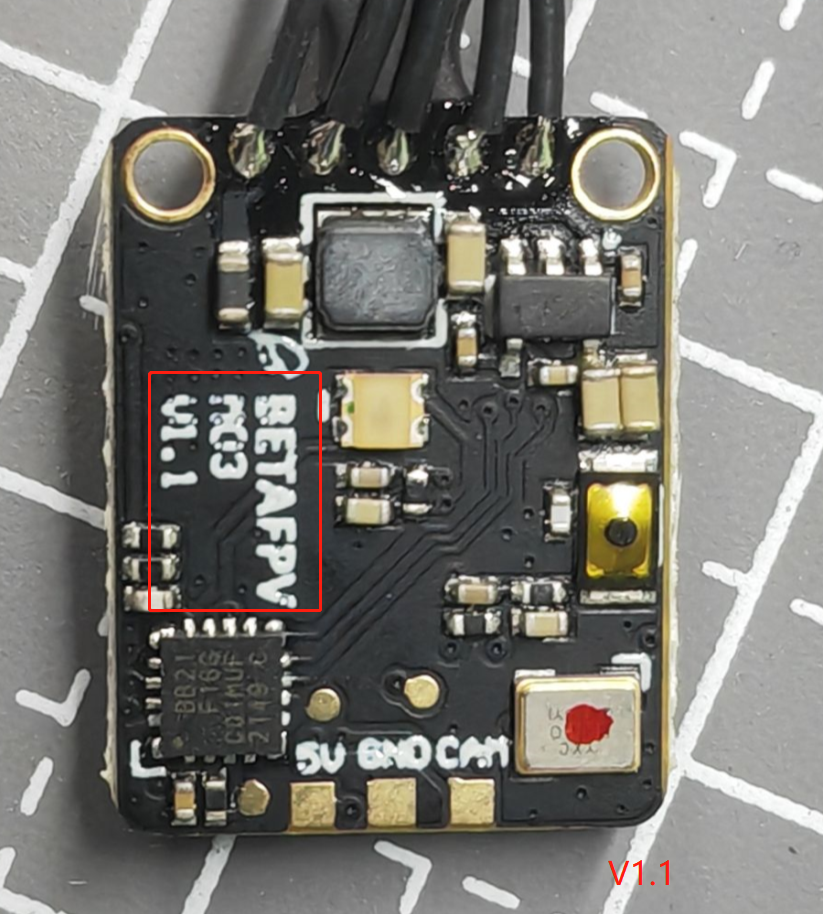

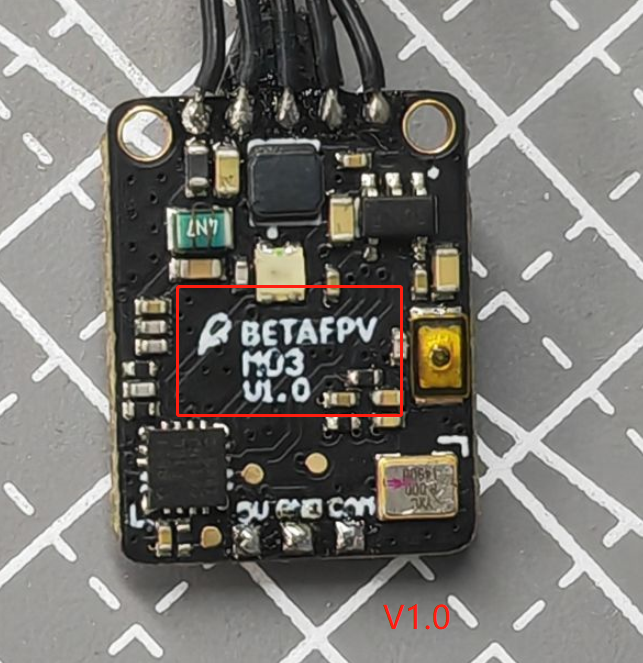

Pay attention: If you aren't sure about the version, please open the cannoy to check.
The latest firmware and CLI is fit for Meteor 75 with M03 VTX V1.1 as follows.
F4 1S 5A SPI Frsky V3.0 FC [Default frequency point：F1（5740）]
Basic firmware: BETAFPVF411RX_4.2.11
It is fit for Meteor 75 Frsky Version & Meteor 75 TBS Version:
No need to flash configuration firmware (including CLI configuration)
BF411RX4.2.11_M75_A_Frsky V3.0_Frsky.hex
BF411RX4.2.11_M75_A_Frsky V3.0_TBS.hex
CLI for quadcopter (Do not need to be flashed separately):
BF411RX4.2.11_M75_A_Frsky V3.0_Frsky.txt
BF411RX4.2.11_M75_A_Frsky V3.0_TBS.txt
F4 1S 5A Serial ELRS V2.0 FC [Default frequency point：F4（5800）]
Basic firmware: BETAFPVF411_4.3.0
It is fit for Meteor 75 ELRS Version:
No need to flash configuration firmware (including CLI configuration)
BF411 4.3.0_M75_A_ELRS V2.0_ELRS2.4g_20230203.hex
CLI for quadcopter (Do not need to be flashed separately):
-------------------------------------------------------------------------------------
The following firmware and CLI is fit for Meteor 75 with M03 VTX V1.0 as follows.
F4 1S 5A SPI Frsky V3.0 FC
Basic firmware: BETAFPVF411RX_4.2.11
It is fit for Meteor 75 Frsky Version & Meteor 75 TBS Version:
No need to flash configuration firmware (including CLI configuration)
BETAFPVF411_Meteor75_Frsky_BLUEJAY.hex
BETAFPVF411_Meteor75_TBS_BLUEJAY.hex
CLI for quadcopter (Do not need to be flashed separately):
BTFL_cli_Meteor75_Frsky_BLUEJAY.txt
BTFL_cli_Meteor75_TBS_BLUEJAY.txt
F4 1S 5A Serial ELRS V2.0 FC
Basic firmware: BETAFPVF411_4.3.0
It is fit for Meteor 75 ELRS Version:
No need to flash configuration firmware (including CLI configuration)
BETAFPVF411_Meteor75_ELRS V2.0_BLUEJAY.hex
CLI for quadcopter (Do not need to be flashed separately):
