CLI for Meteor65（2022）

Kathy
  • Updated

Corresponding FC for Meteor 65: F4 1S 5A SPI Frsky V3.0 FC   &  F4 1S 5A Serial ELRS V2.0 FC

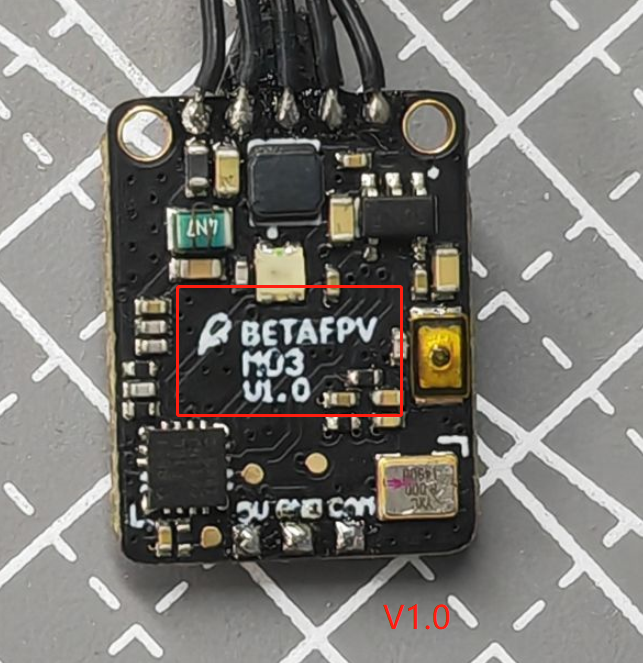

The latest CLI which is fit for M03 VTX 1.1 version is different from the one is fit for M03 VTX 1.0.

Pay attention: If you aren't sure about the version, please open the cannoy to check.



The latest firmware and CLI is fit for Meteor 65 with M03 VTX V1.1 as follows.

F4 1S 5A SPI Frsky V3.0 FC       [Default frequency point：F1（5740）]

Basic firmware: BETAFPVF411RX_4.2.11

It is fit for Meteor 65 Frsky Version  &  Meteor 65 TBS Version :

No need to flash configuration firmware (including CLI configuration)

BF411RX4.2.11_M65_A_Frsky V3.0_Frsky.hex

BF411RX4.2.11_M65_A_Frsky V3.0_TBS.hex

CLI for quadcopter (Do not need to be flashed separately):

BF411RX4.2.11_M65_A_Frsky V3.0_Frsky.txt

BF411RX4.2.11_M65_A_Frsky V3.0_TBS.txt

F4 1S 5A Serial ELRS V2.0 FC          [Default frequency point：F4（5800）]

           -------------------------------------------------------------------------------------



 The following firmware and CLI is fit for Meteor 65 with M03 VTX V1.0 as follows.


F4 1S 5A SPI Frsky V3.0 FC

Basic firmware: BETAFPVF411RX_4.2.11

It is fit for Meteor 65 Frsky Version  &  Meteor 65 TBS Version :

No need to flash configuration firmware (including CLI configuration)

BETAFPVF411_Meteor65_Frsky V3.0_BLUEJAY.hex

BETAFPVF411_Meteor65_TBS_BLUEJAY.hex

CLI for quadcopter (Do not need to be flashed separately):

BTFL_cli_Meteor65_Frsky v3.0_BLUEJAY.txt

BTFL_cli_Meteor65_TBS_BLUEJAY.txt

F4 1S 5A Serial ELRS V2.0 FC
