How to connect the LiteRadio4 remote controller to the Phoenix simulator

Preparation

1. Prepare a USB-C data cable that is equipped with connectivity to a computer.
2. LiteRadio 4 Twilight Limited Edition
3. The emulator version is 5.0 or 6.0.

Important Notes

• To connect the LR4 transmitter to the Phoenix simulator, the dongle mode must be activated, and the firmware must be updated to version V1.1.2_20251015 or later.

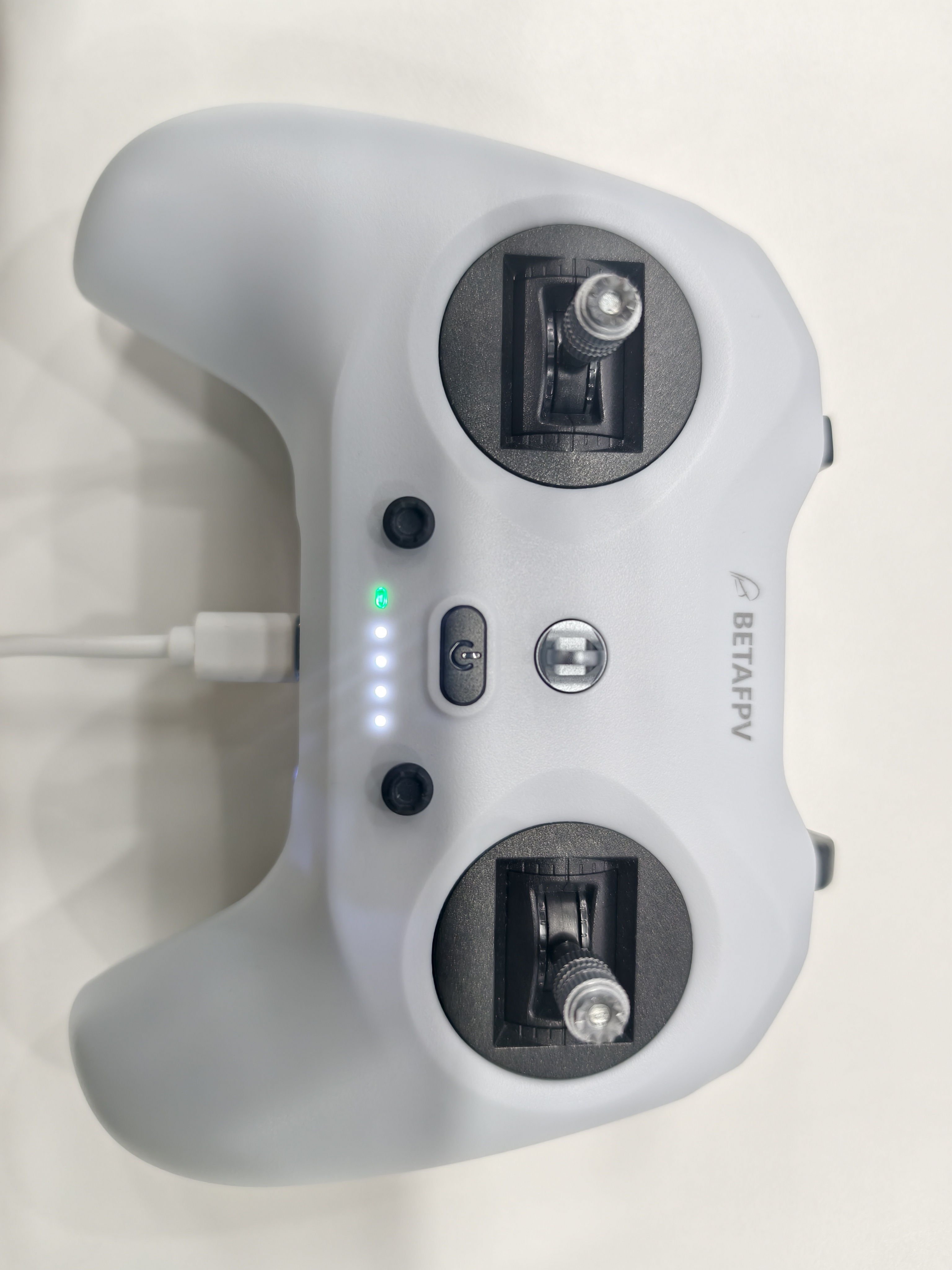

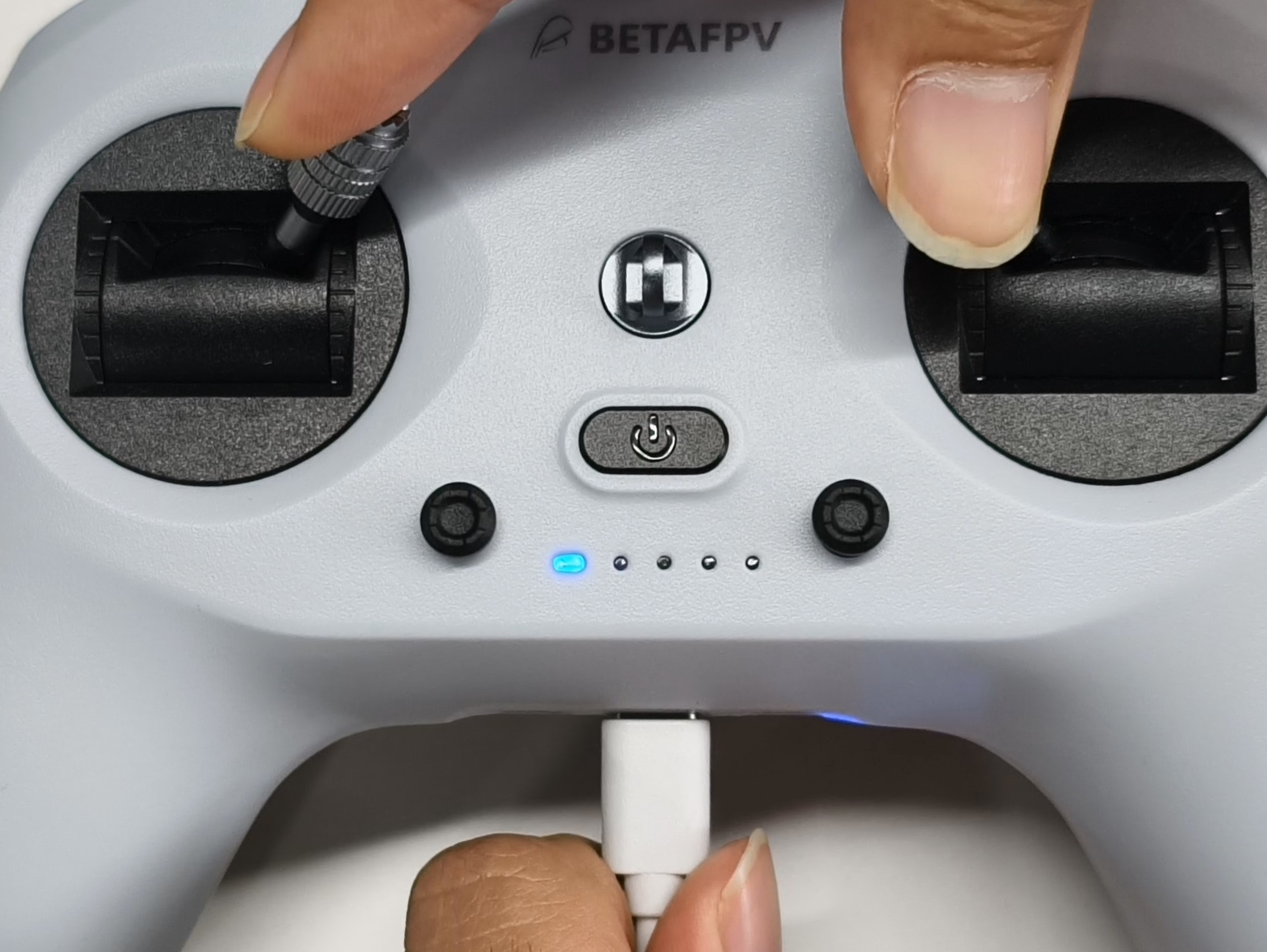

• When connecting to the simulator, the transmitter must first be switched to dongle mode. The procedure for entering dongle mode is as follows: fully deflect the left control stick to the upper-right corner and the right control stick to the upper-left corner, then connect the USB cable to the computer while maintaining this stick position. Once successfully entered, the transmitter indicator will flash blue three times, as illustrated below.

Simulator Joystick Channel Configuration (American Mode as an Example)

Important Notes:

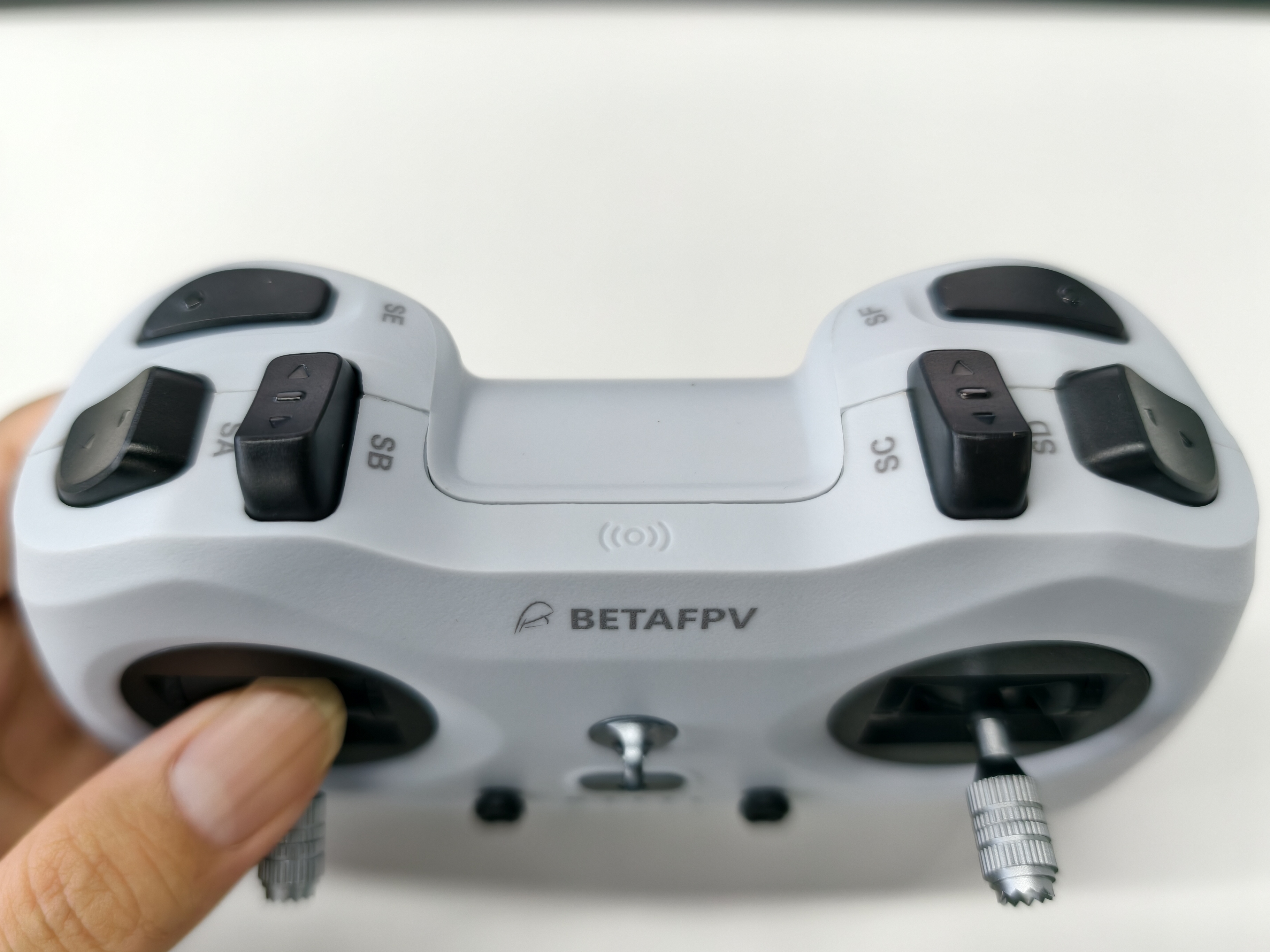

1. When configuring the transmitter joysticks, ensure all switches on the transmitter are reset to their default minimum positions, as shown in Figure 1-1
2. During channel setup, after completing the configuration for each channel, return the joystick to its neutral position before proceeding to the next step, as illustrated in Figure 1-2.

                                        1-1                                                                              2-2

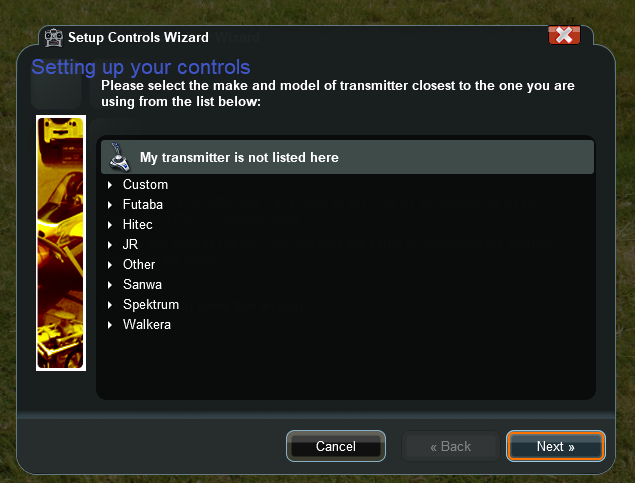

Remote Control Channel Configuration Process:

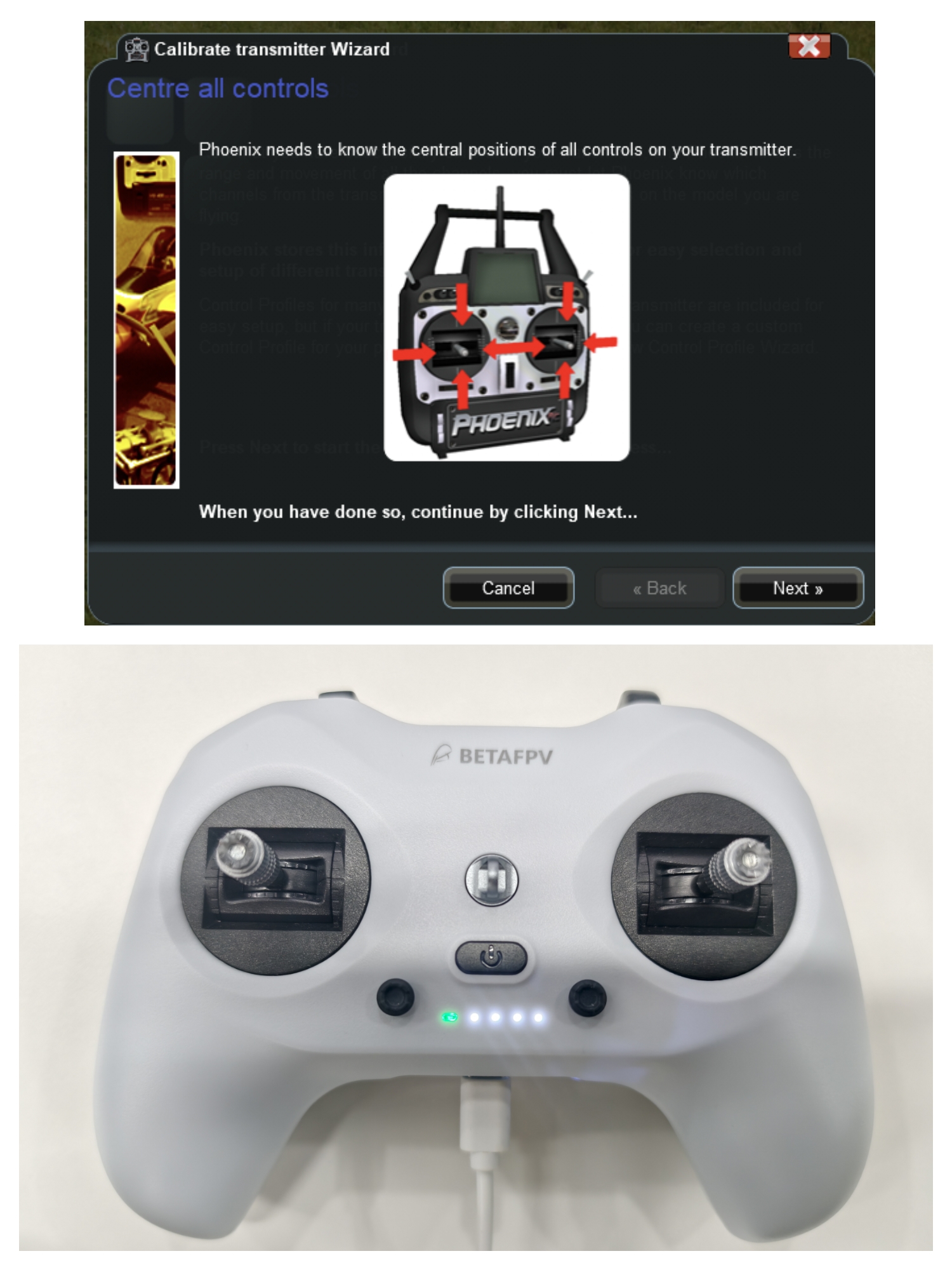

Set stick neutral positions: Refer to the figure below.

Move the thumbstick to its maximum position:Rotate the joystick in a full circle at maximum deflection.

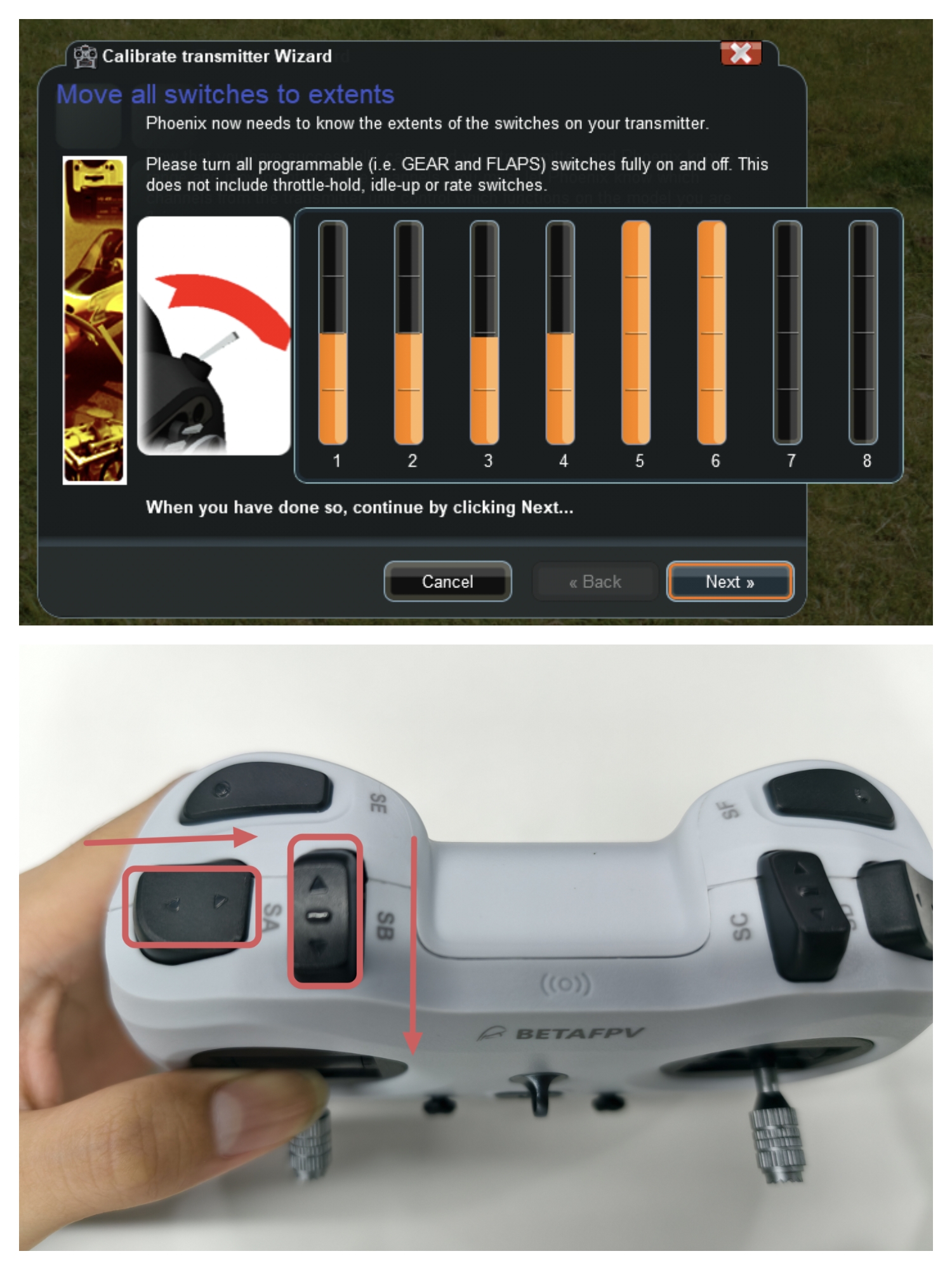

Move all switches to extens:Please refer to the image below for buttons such as SA and SB.

Calibration Verification: Move the joystick and toggle the switch to their maximum positions to confirm the mapping accuracy. Click "Complete" once verified.

Control Channel Configuration: Please refer to the image below.

Configuration Profile Naming:  LiteRadio4

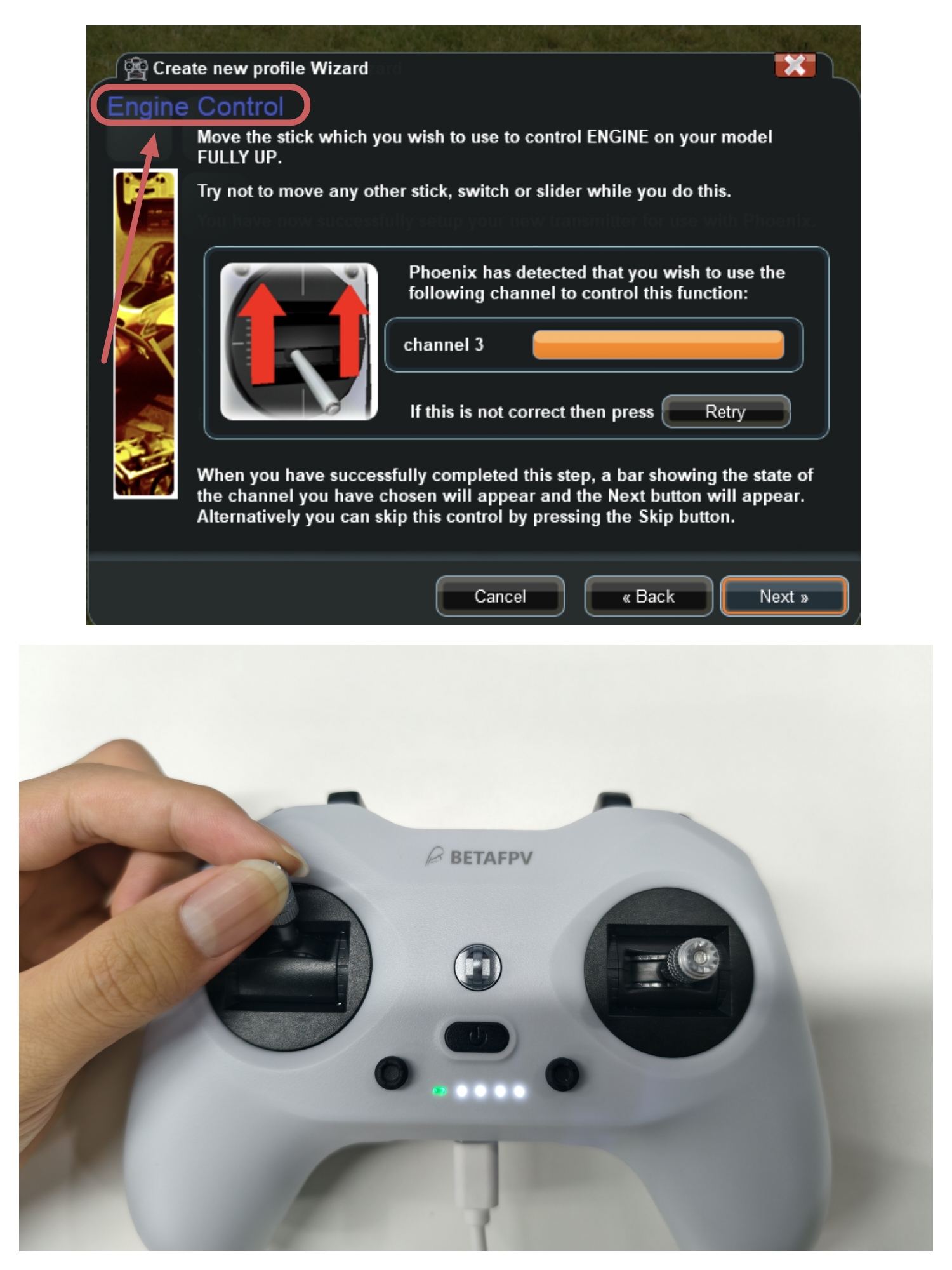

Engine Control and Pitch Control: Refer to the diagram below.

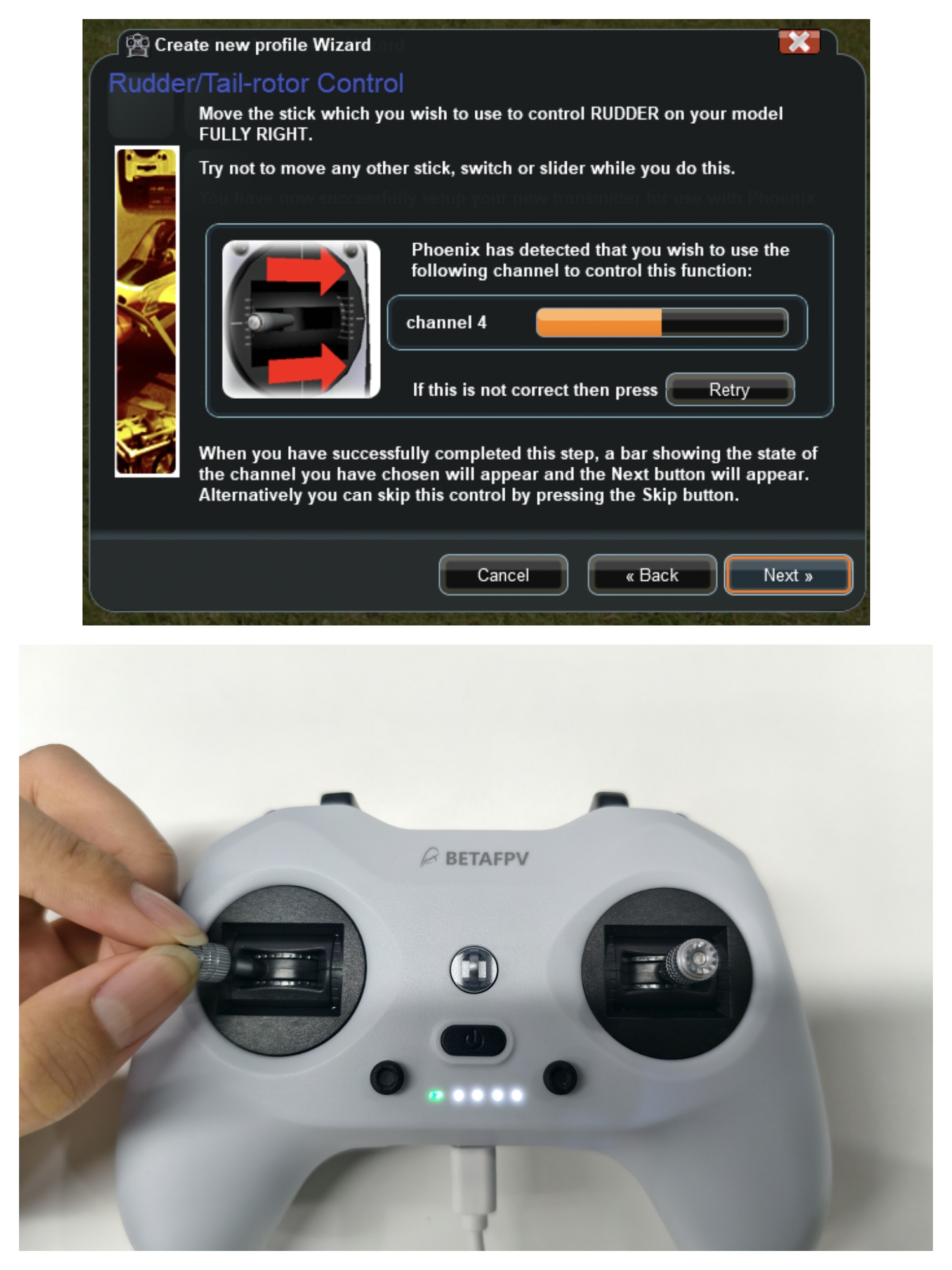

Rudder Control: Refer to the figure below.

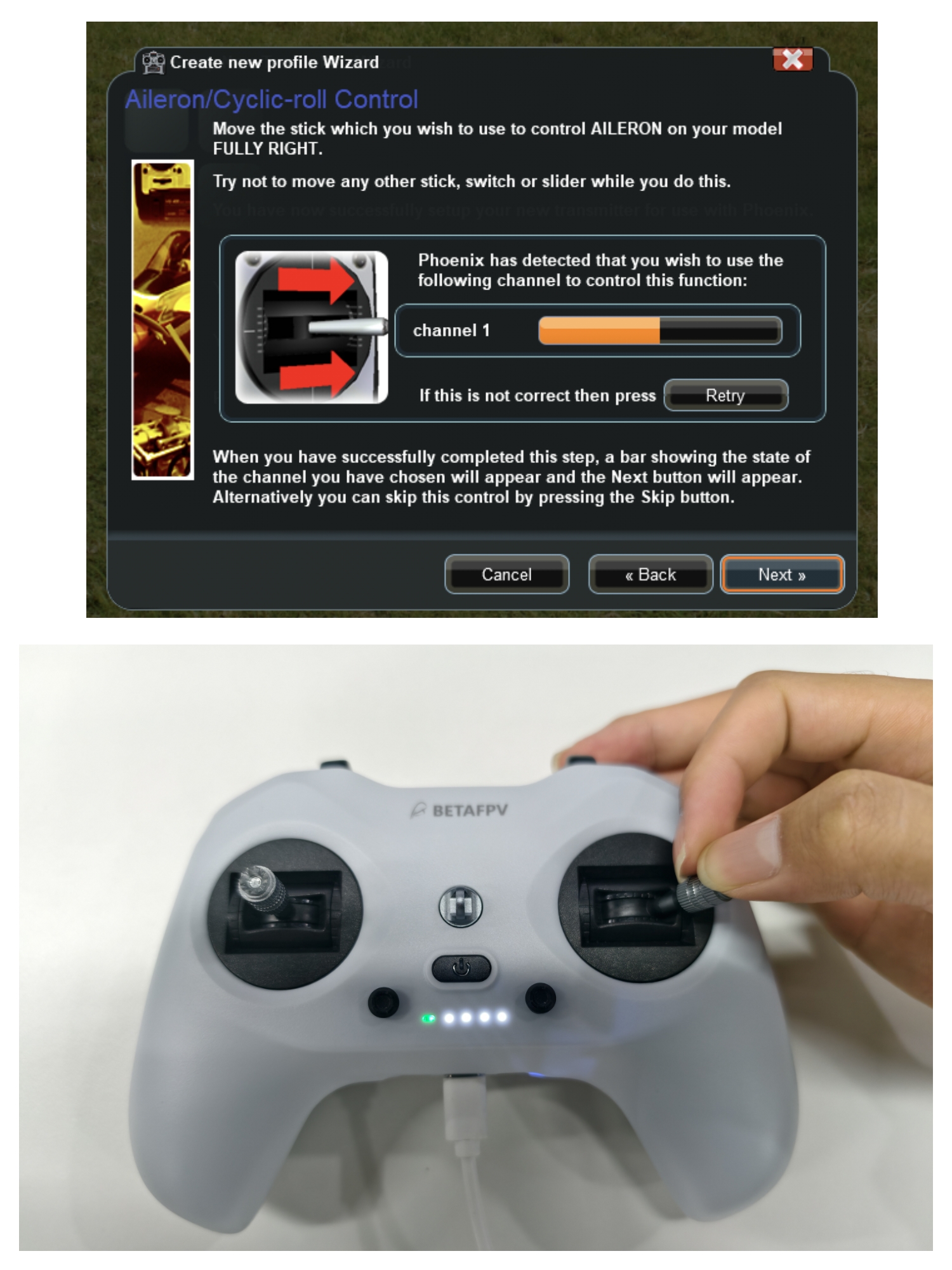

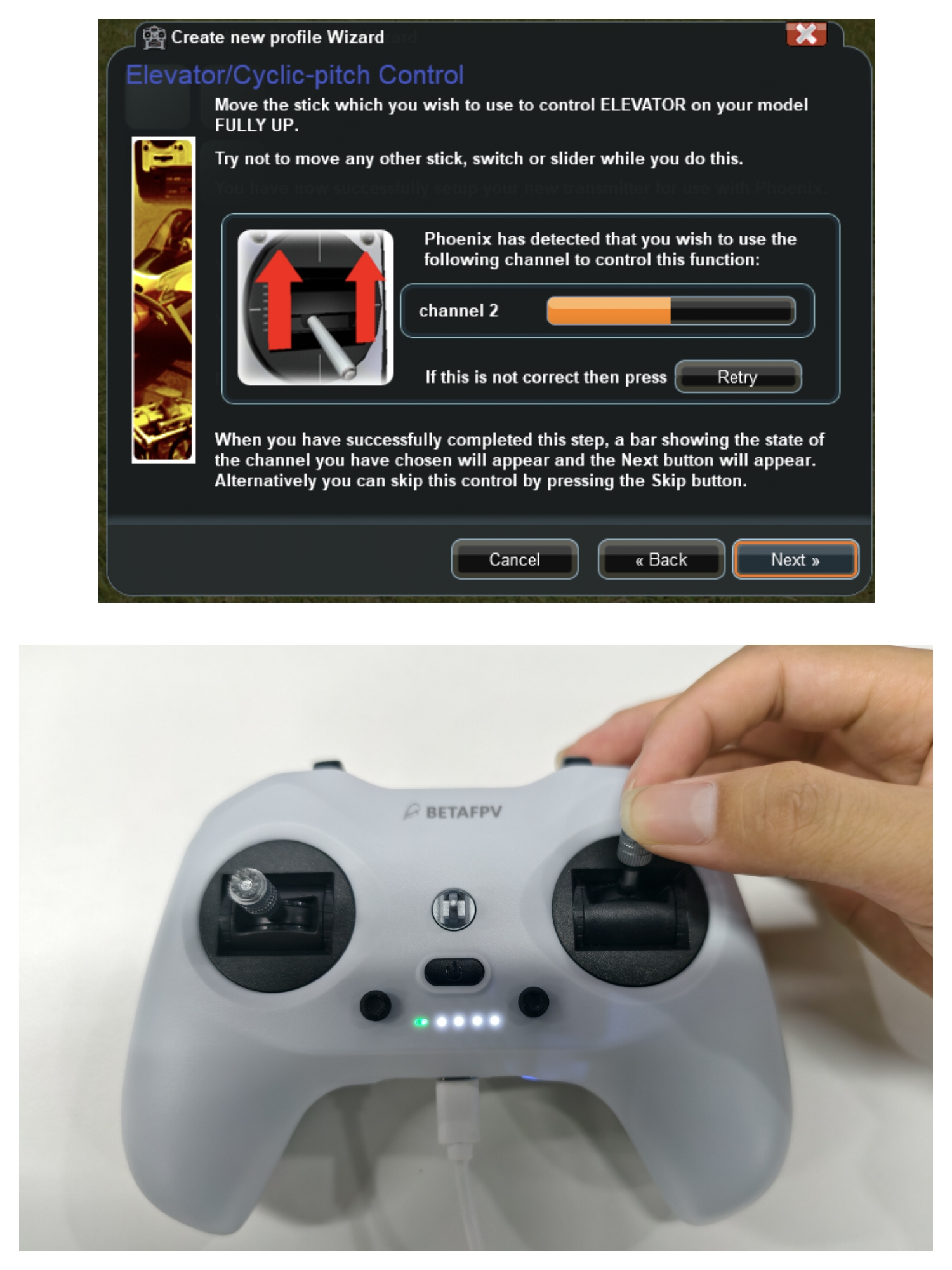

Elevator Control and Aileron Control: Refer to the image below.

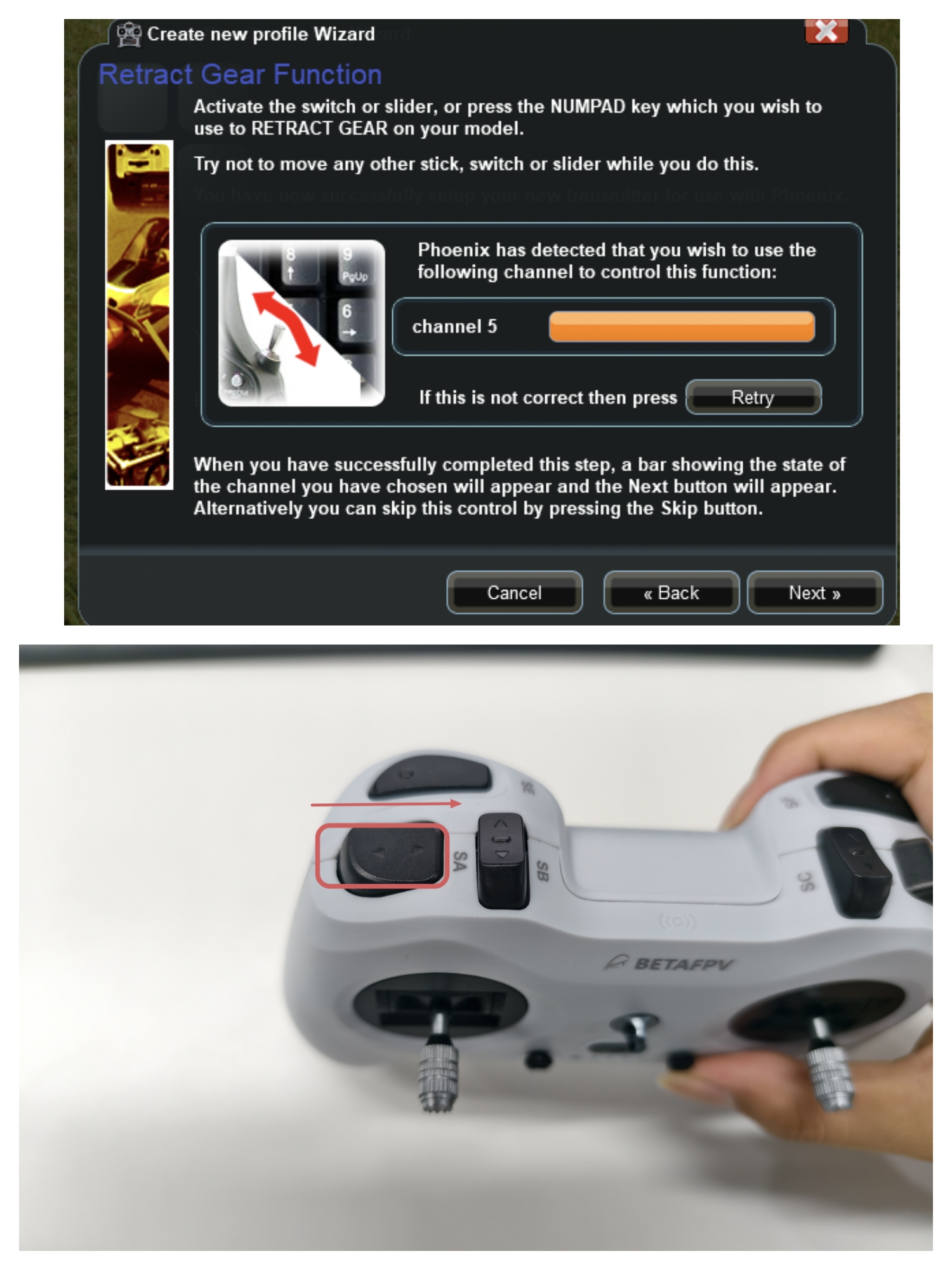

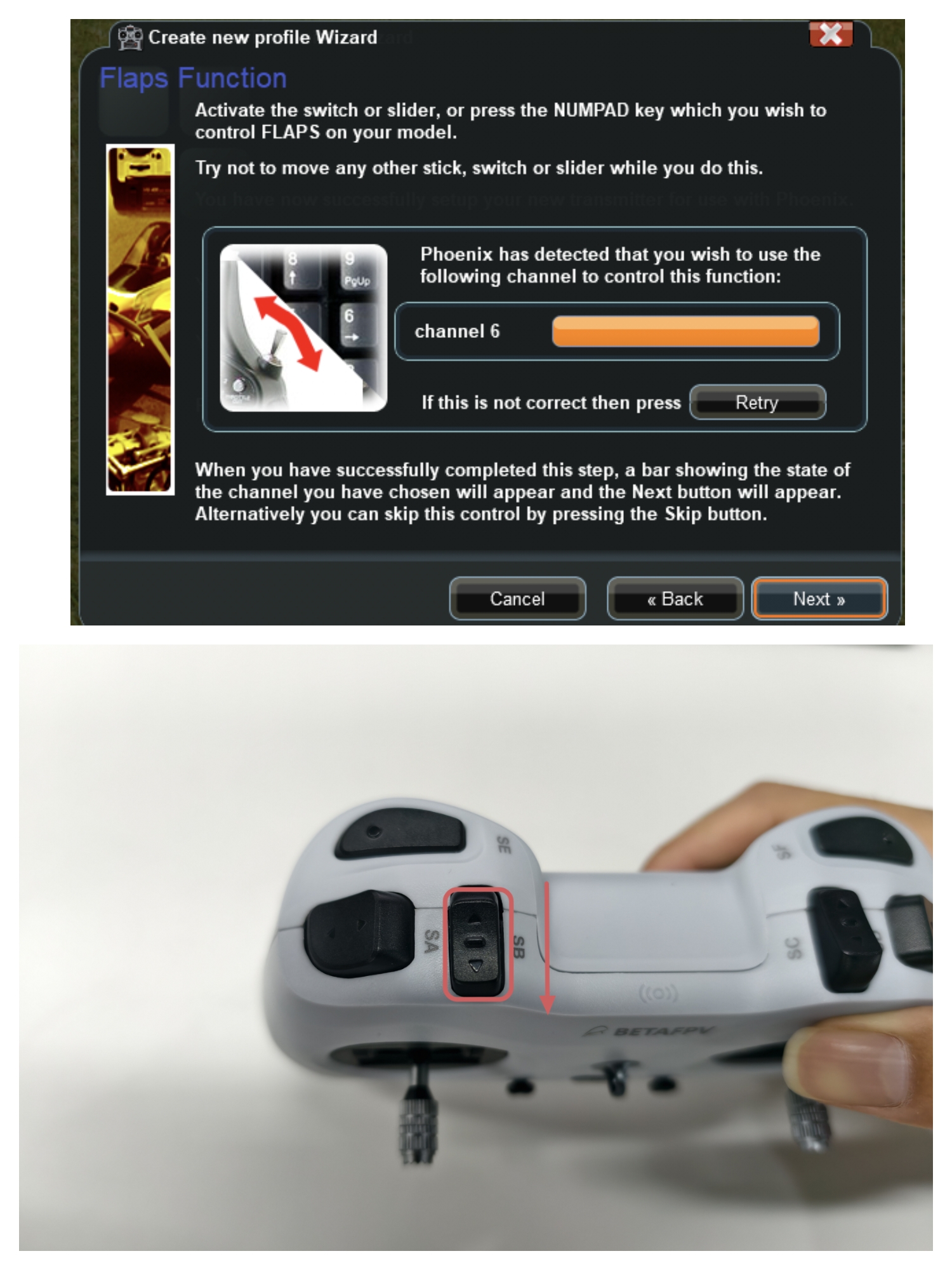

Control of Landing Gear Retraction and Flap Operation: Refer to the figure below.

Switching Maps and Replacing Models

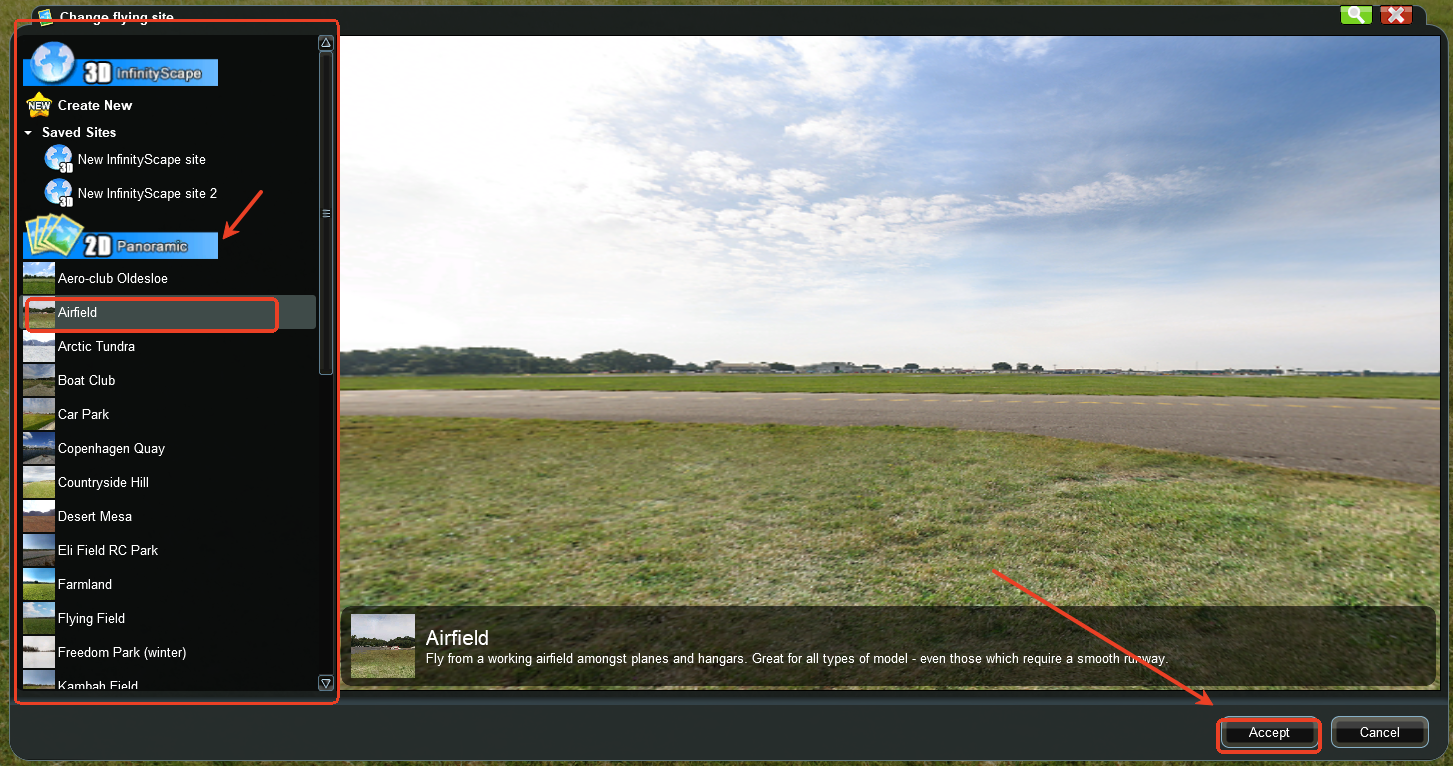

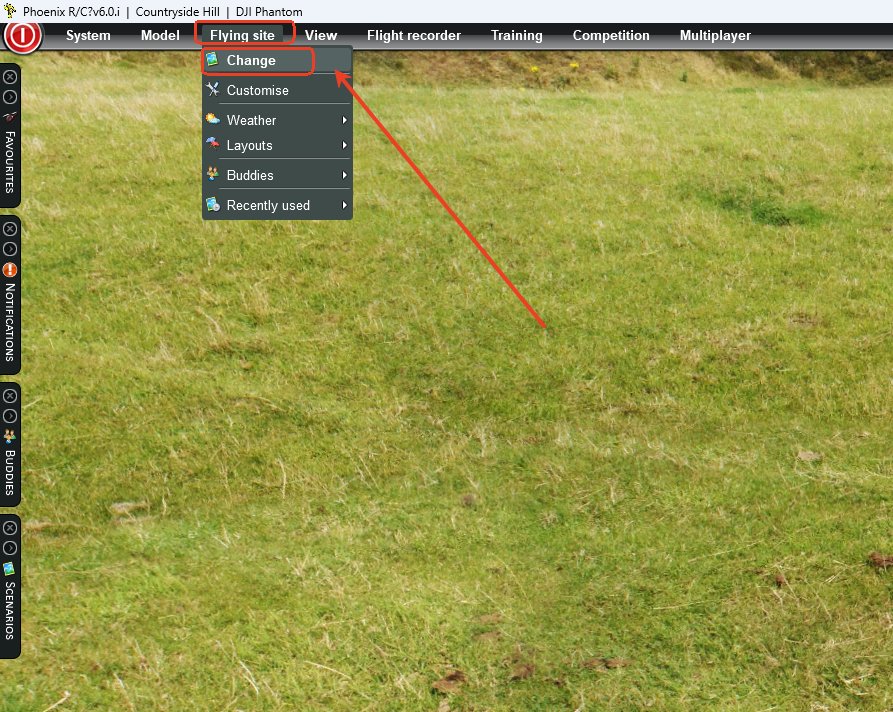

Switch Map: Venue Selection — Venue Change

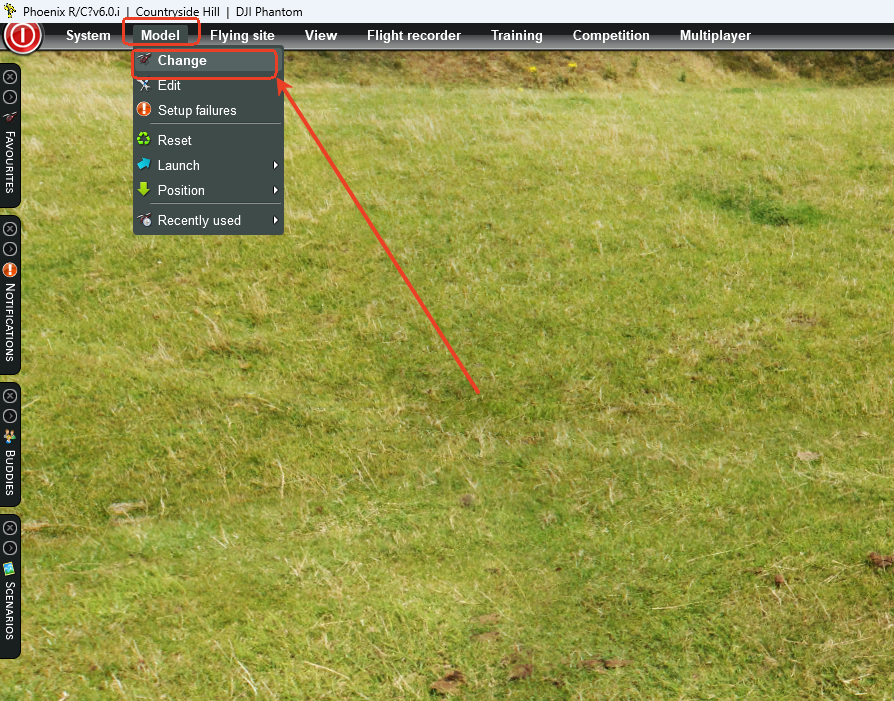

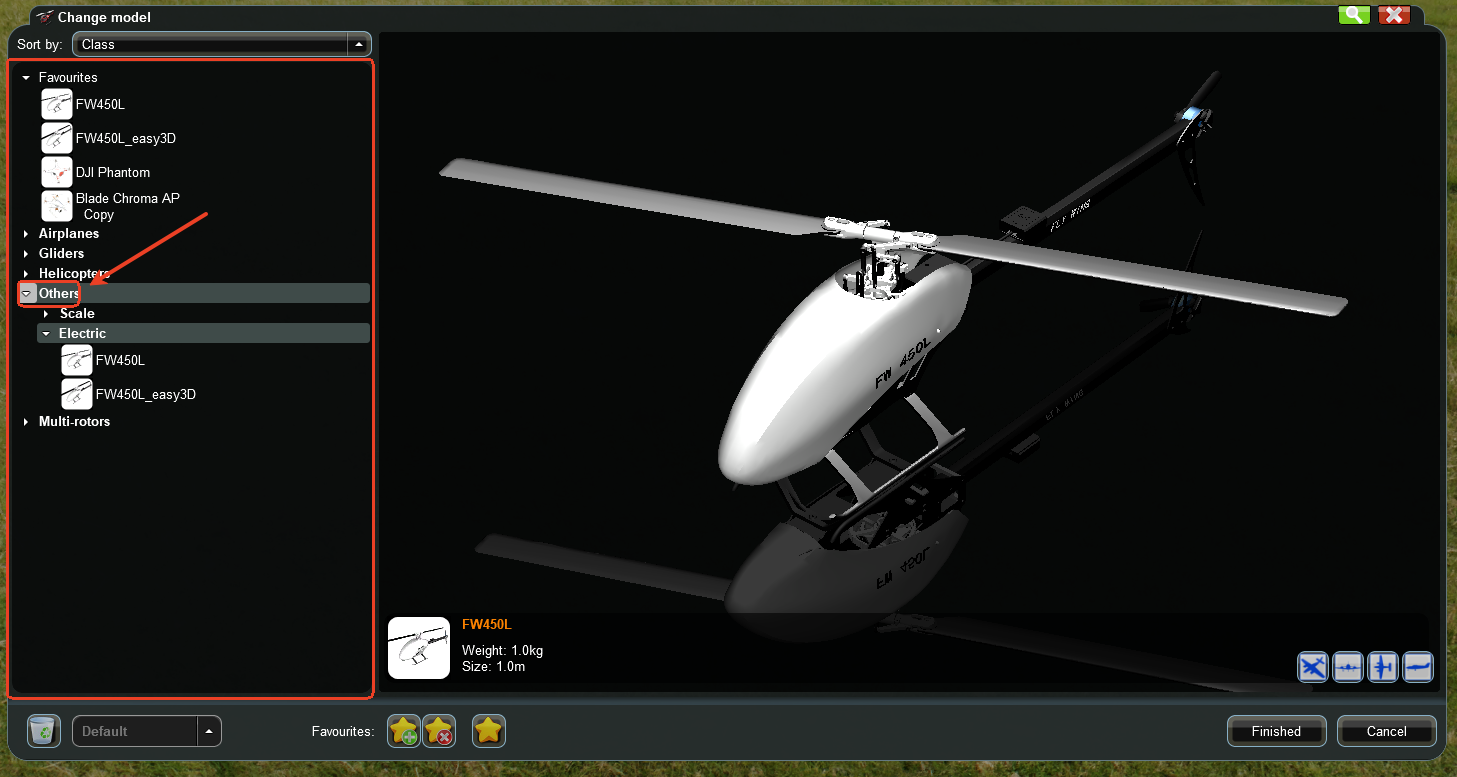

Please switch the model: Select Model — Change Model

Remote Control Channel Configuration Guide

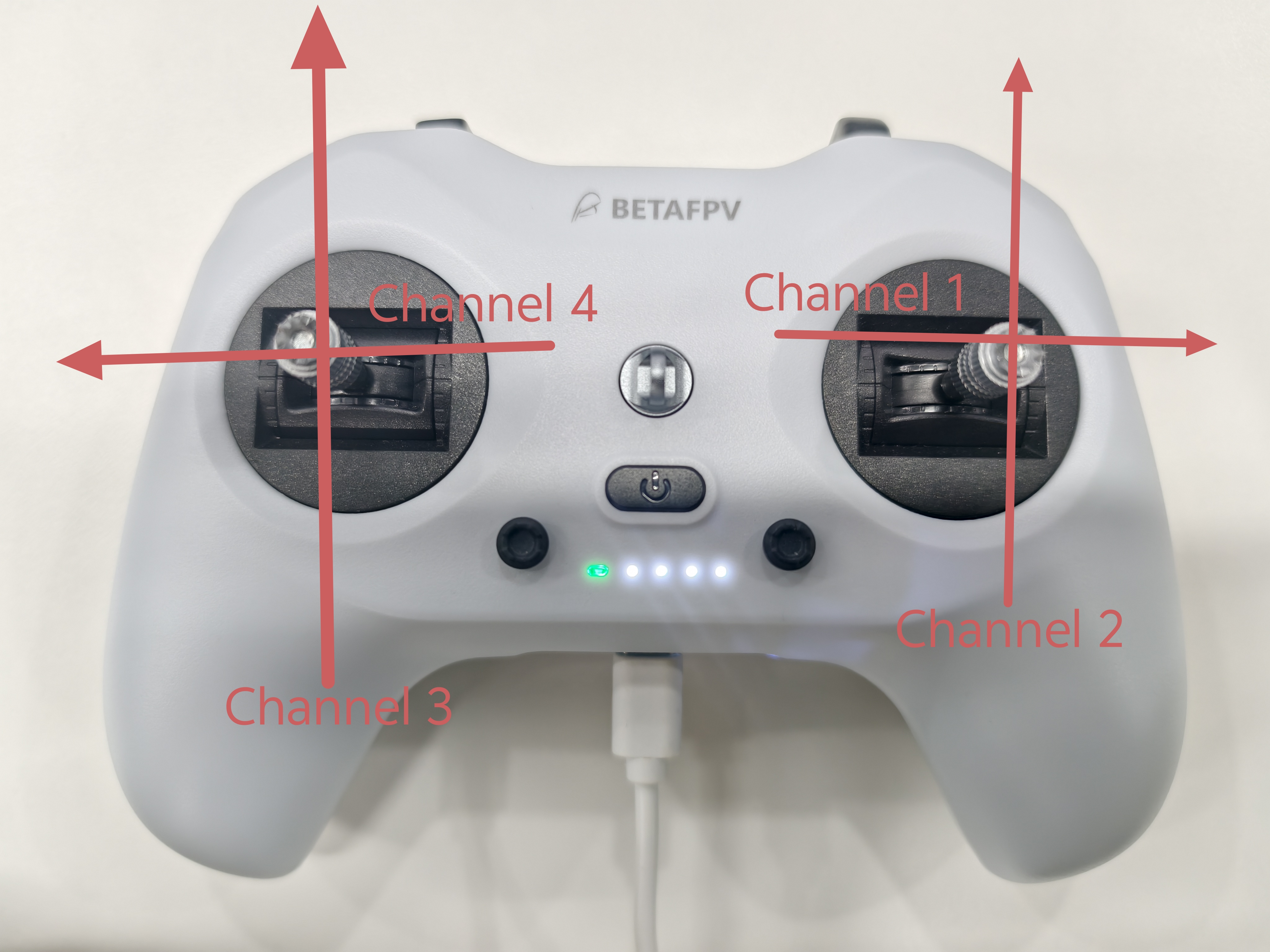

Channel Description: The vertical axis of the left joystick corresponds to Channel 3, and the horizontal axis corresponds to Channel 4. The vertical axis of the right joystick corresponds to Channel 2, and the horizontal axis corresponds to Channel 1.

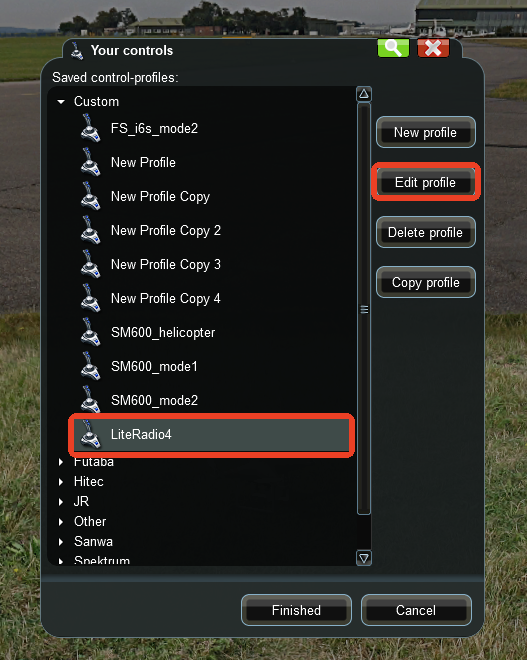

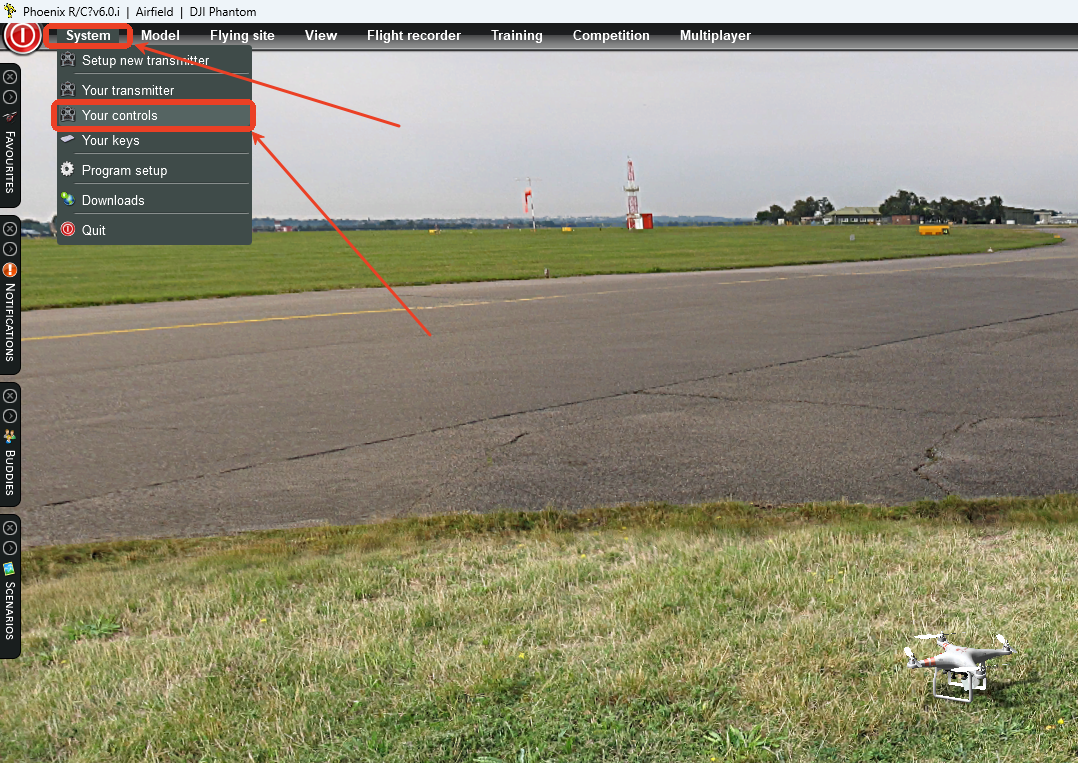

Access the Channel Settings page: Navigate to System Settings > Remote Control Channel Settings > LiteRadino4 > Edit Profile.

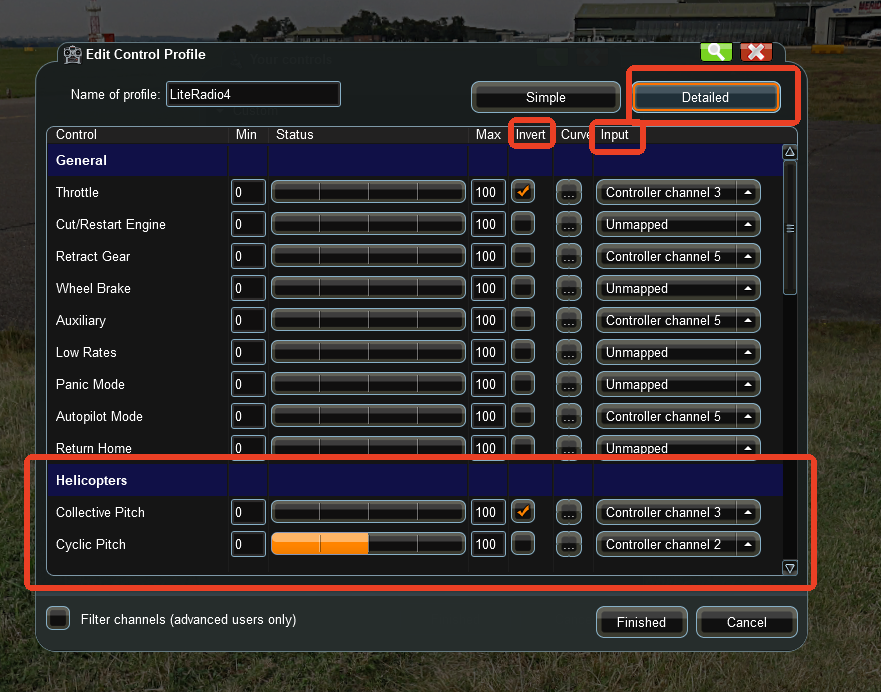

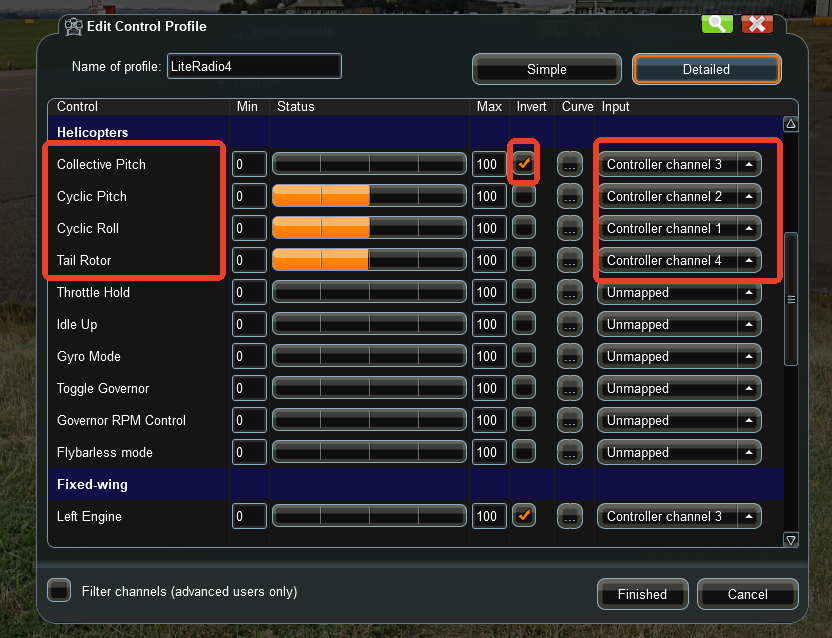

Helicopter and Multirotor Configuration Reference

Binding Instructions: The Invert position option enables channel inversion. When activated, this setting reverses the operation of the channel function. By default, the throttle channel on the LiteRadino4 remote controller has this option enabled.

The Input position option (rightmost column) corresponds to the binding channel of the remote controller. This setting can also be customized as needed.

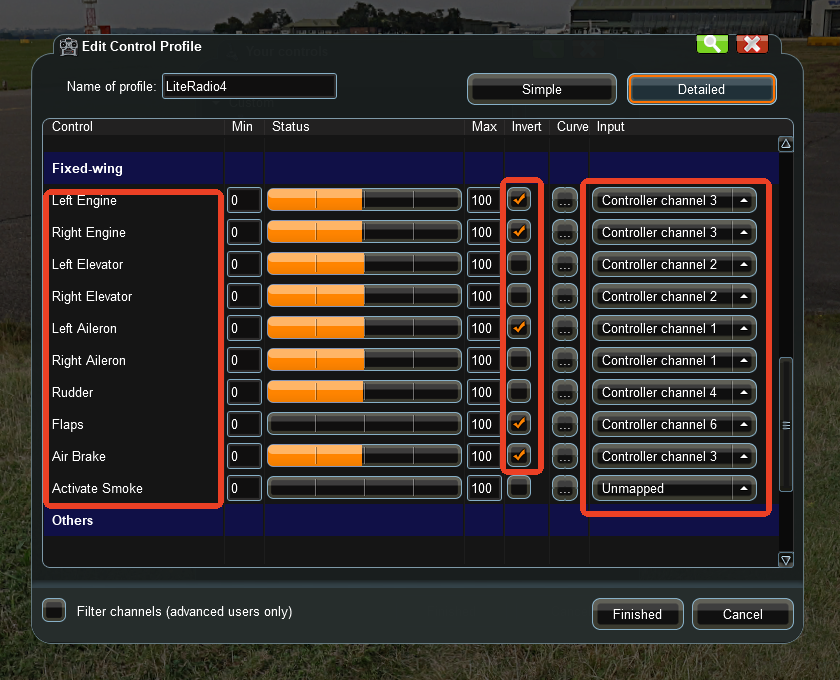

Fixed-Wing Configuration Reference
