How to replace the VTX Module of Aquila 16

Remove the camera module

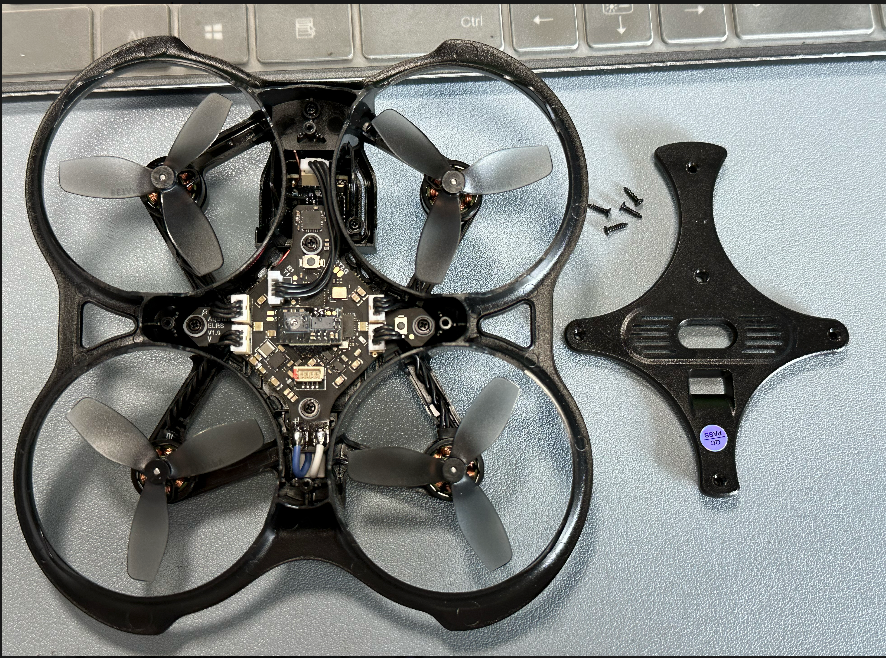

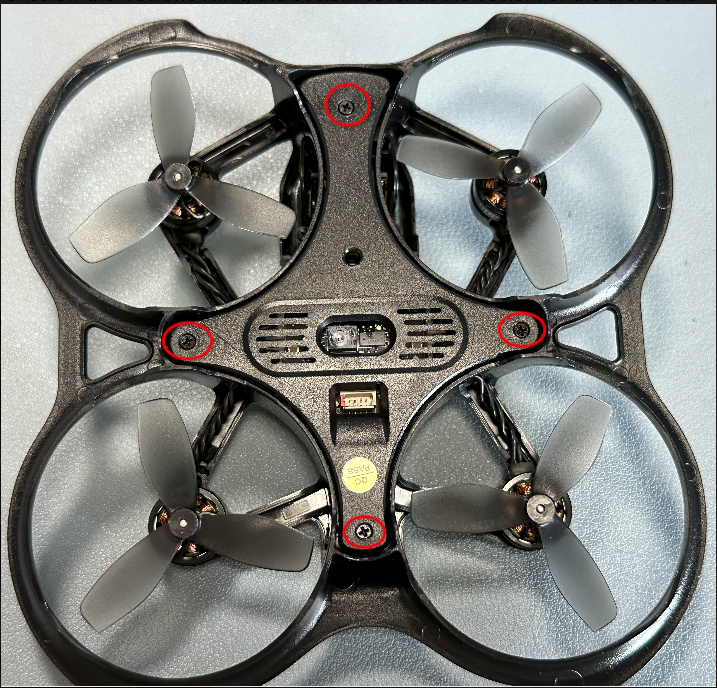

1. Unscrew the 4 screws fixing the bottom cover at the bottom of the drone and remove the bottom cover；

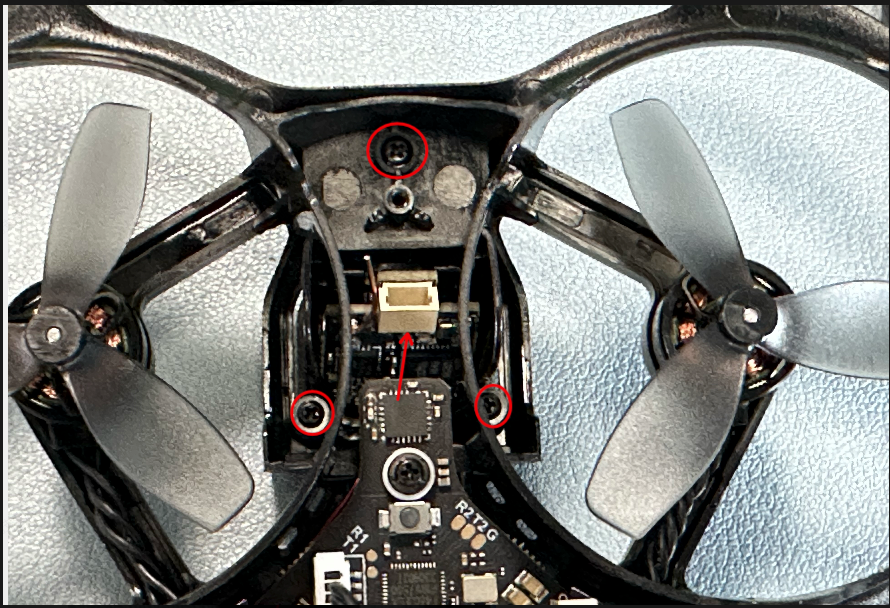

2.Disconnect the cable between the VTX module and the flight controller, then unscrew the 3 screws fixing the camera top cover and remove the top cover；

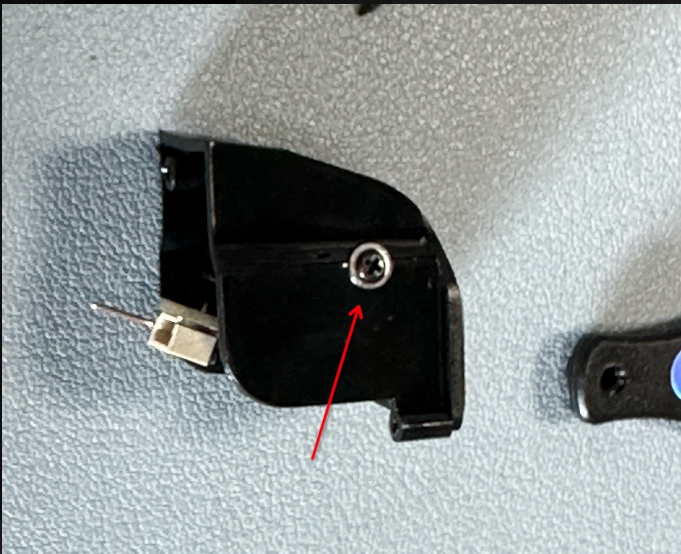

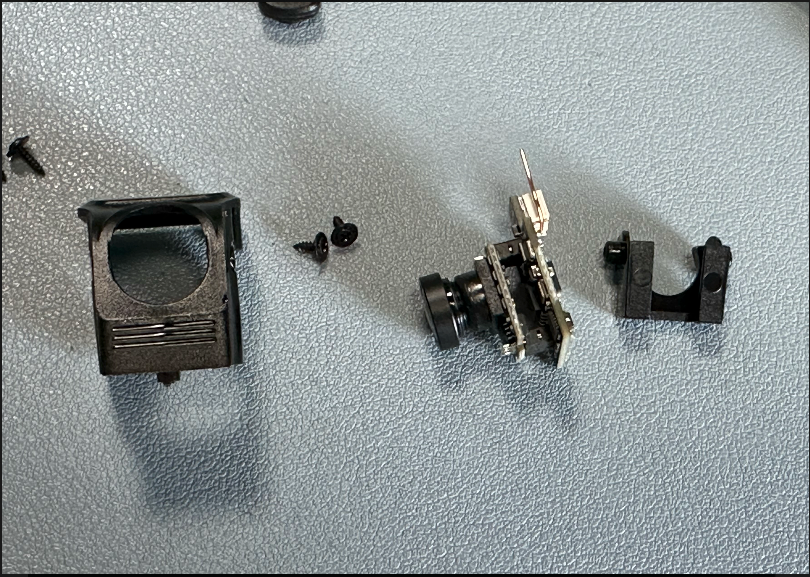

3.Unscrew the screws on both sides of the camera canopy and remove the camera module.

Install the camera module

First: Assembling the lens mount：

Note：

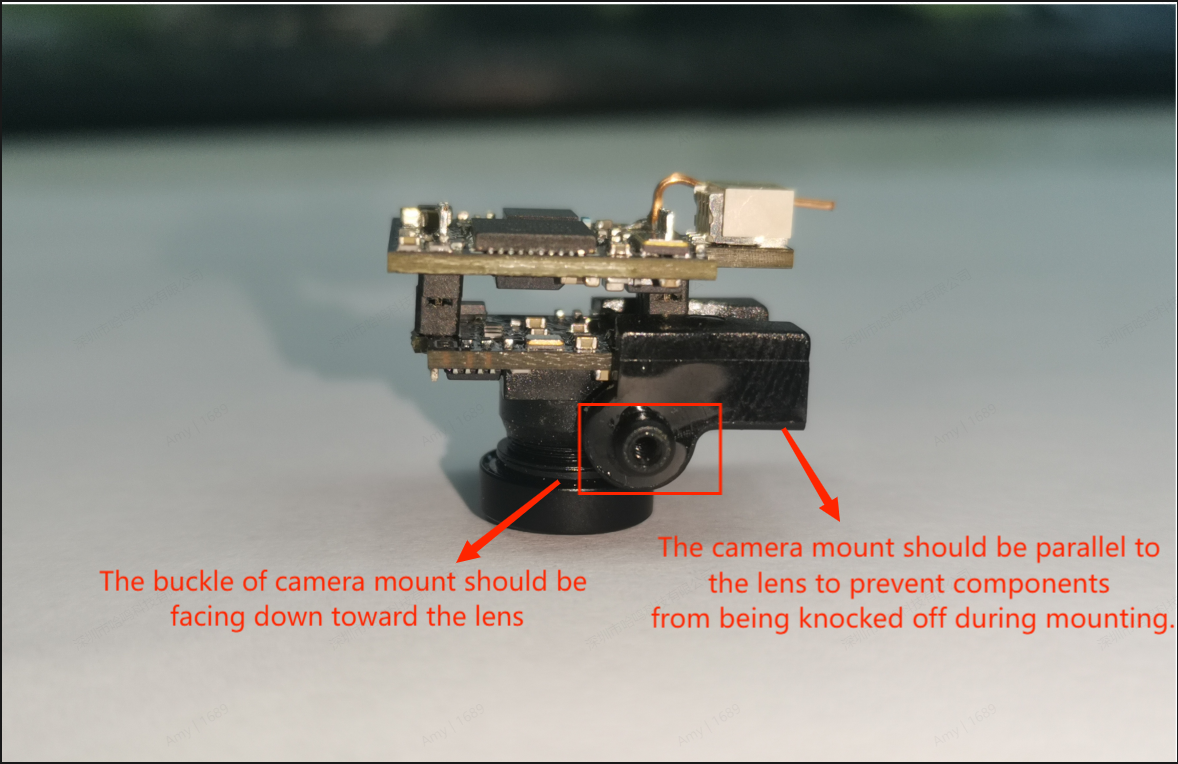

1.The lens needs to be facing down vertically to the ground, and the buckle of the camera mount should be facing down toward the lens;

2.The camera mount needs to be installed parallel to the lens to prevent components from being knocked off during mounting.

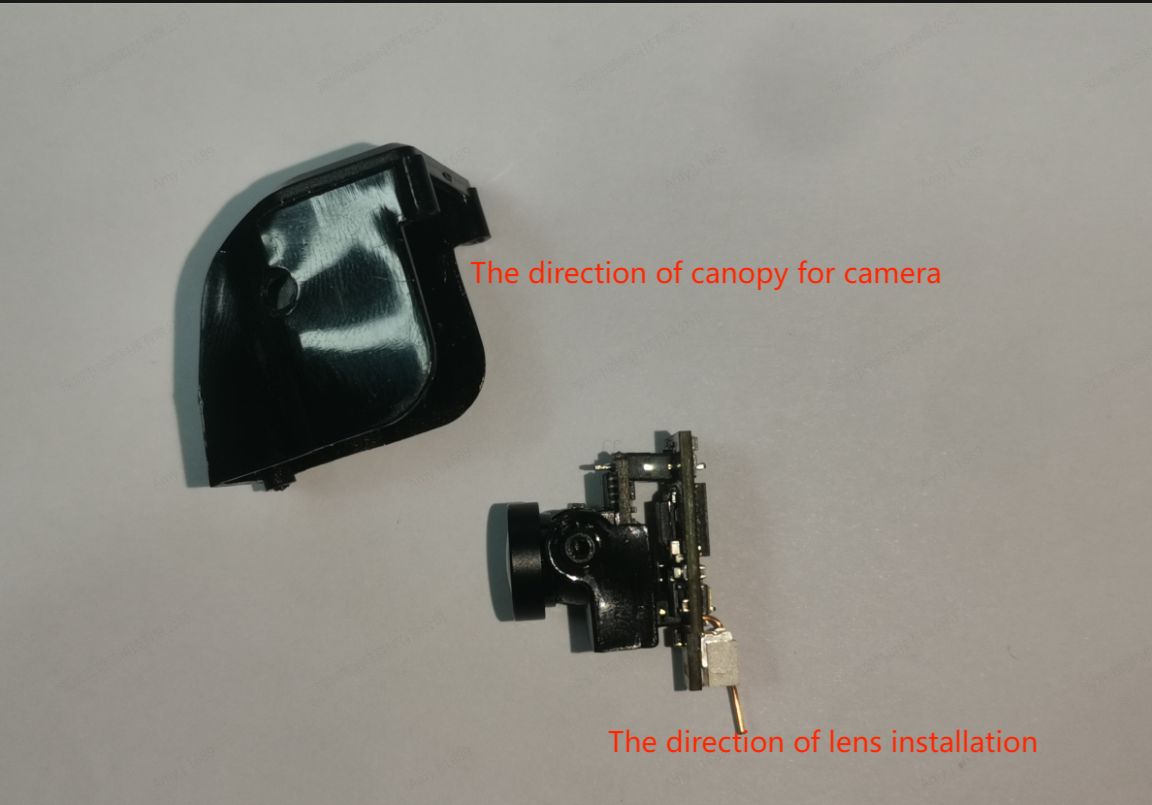

Second：The method of Lens mounting：

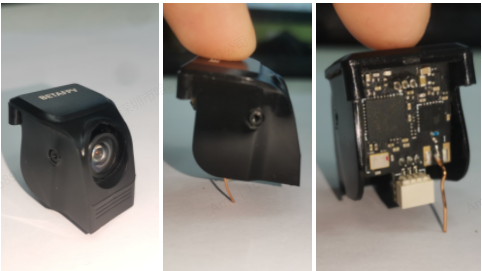

Assembly effect (front, side, back)

Third: Install the new camera module into the canopy and tighten the screws on

the side of the canopy. In order to obtain the best VTX signal, please ensure

that the transmission antenna is placed vertically.

( Note: Incorrect placement of antenna may cause a black screen)

Fourth: Install the canopy and tighten the screws. Please pay attention to the

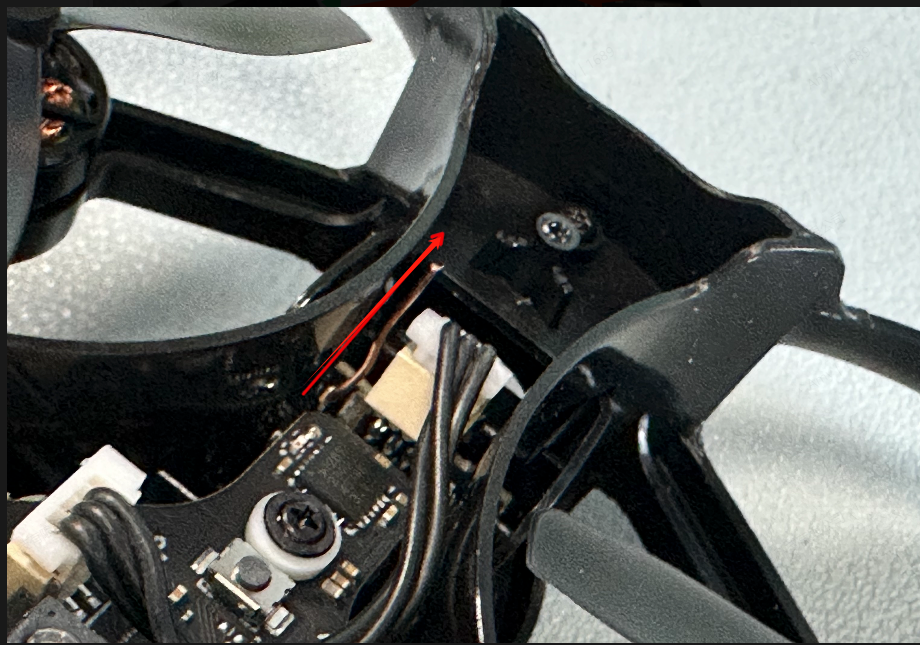

placement of the image transmission antenna when installing.

Fifth：Connect the cable between the VTX and the flight control, and then

install the bottom cover. The replacement of the camera module has now been

completed.
